NEMA 14-50 Outlet Installation
Need a 240-volt, 50-amp NEMA 14-50 outlet for an EV charger, RV, welder, range or generator? We install code-compliant 14-50 circuits across Auburn and the foothills — correct 6 AWG wiring, dedicated 50 A breaker, GFCI protection, permitted and inspected. Done right the first time.
Service Fit for a King
Meadow Vista, Lake of the Pines, Lincoln, Newcastle, Penryn, Loomis
NEMA 14-50 Outlet Installation in Auburn, California
The NEMA 14-50 is the workhorse of 240-volt power — a heavy-duty, 50-amp four-prong outlet that powers everything from EV chargers and RVs to welders, electric ranges and portable generators. We install NEMA 14-50 outlets throughout Auburn and Placer County: the right wire, the right breaker, GFCI protection where code requires it, permitted and inspected. Whatever you’re plugging in, we’ll make sure the circuit behind it is done right.
What a NEMA 14-50 Outlet Powers
A 14-50 delivers 240 volts at up to 50 amps — enough for the biggest plug-in loads in a typical home or shop:

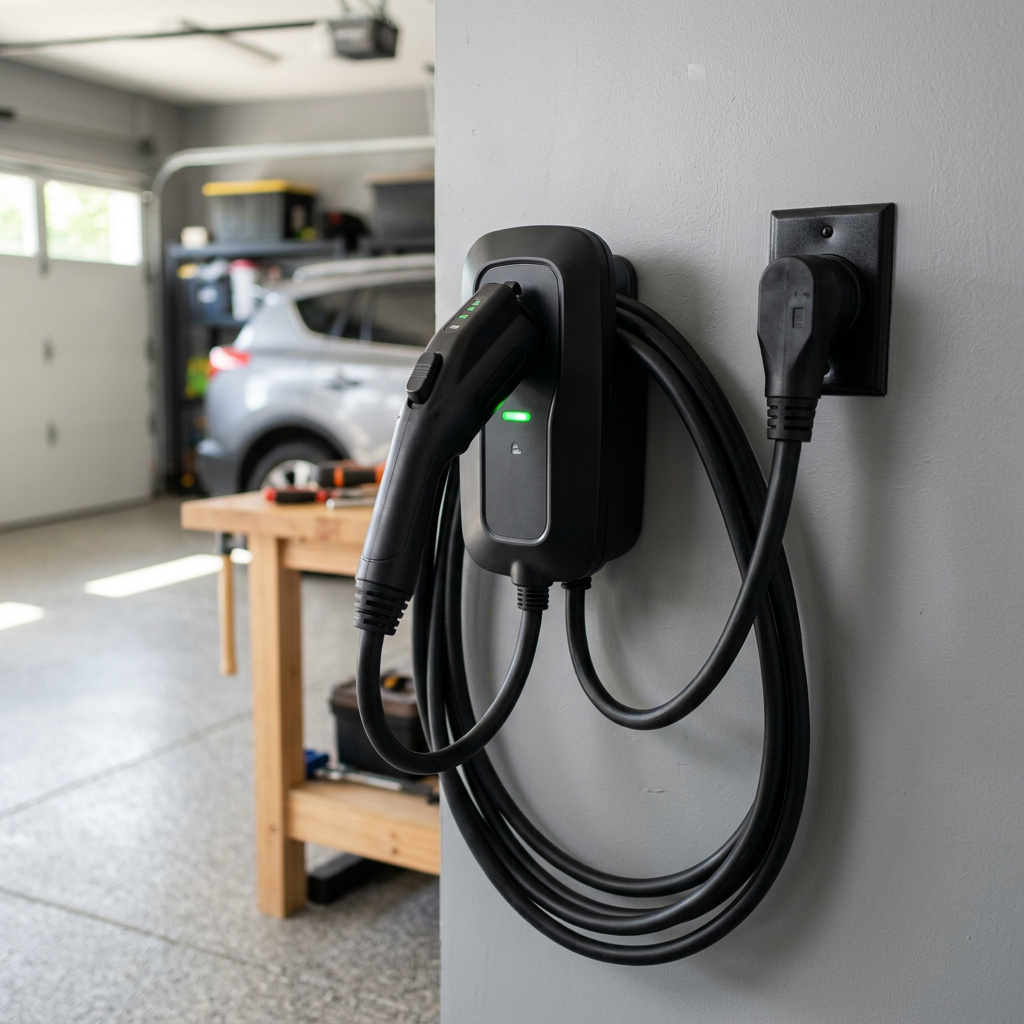

- EV charging: The most common request today — works with the Tesla Mobile Connector and most portable Level 2 EVSEs.
- RV hookups: The standard 50 A RV shore-power connection for home parking or guest use.
- Welders & shop equipment: Stick and MIG welders, large compressors and other 240 V tools.
- Electric ranges & ovens: The modern four-prong standard for kitchen cooking appliances.
- Portable generators: A convenient 240 V connection point (paired with the right transfer equipment).

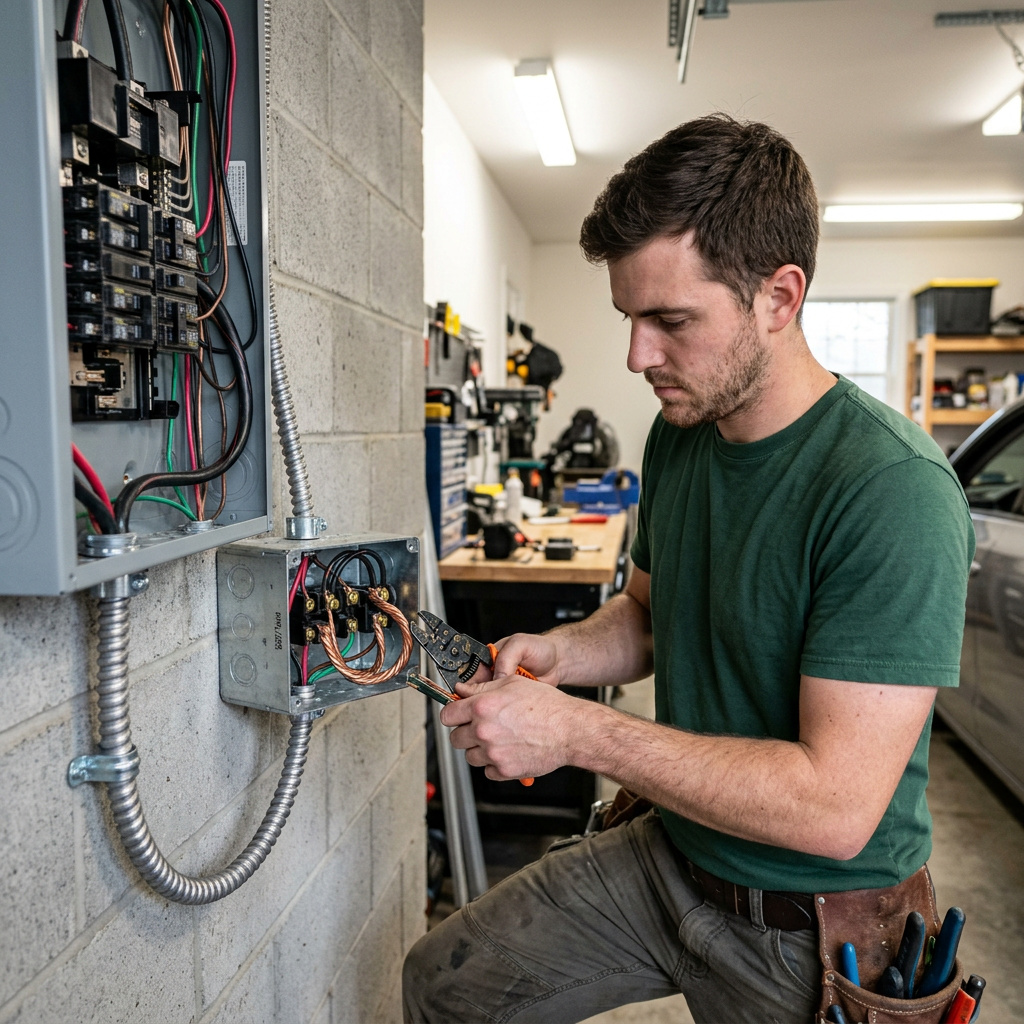

Installed Right: Wire Size, Breaker & Circuit
A 14-50 is a serious circuit, and the details are where DIY and handyman jobs go wrong:
- Correct wire size: A true 50 A outlet needs 6 AWG copper conductors — not the 8 AWG that’s often substituted to save money and runs hot.
- Dedicated 50 A breaker: Its own double-pole breaker, properly torqued, feeding nothing else.
- Four-wire circuit: Two hots, a neutral and a ground — the 14-50 is a 4-prong device and requires the neutral, even when your equipment doesn’t use it.

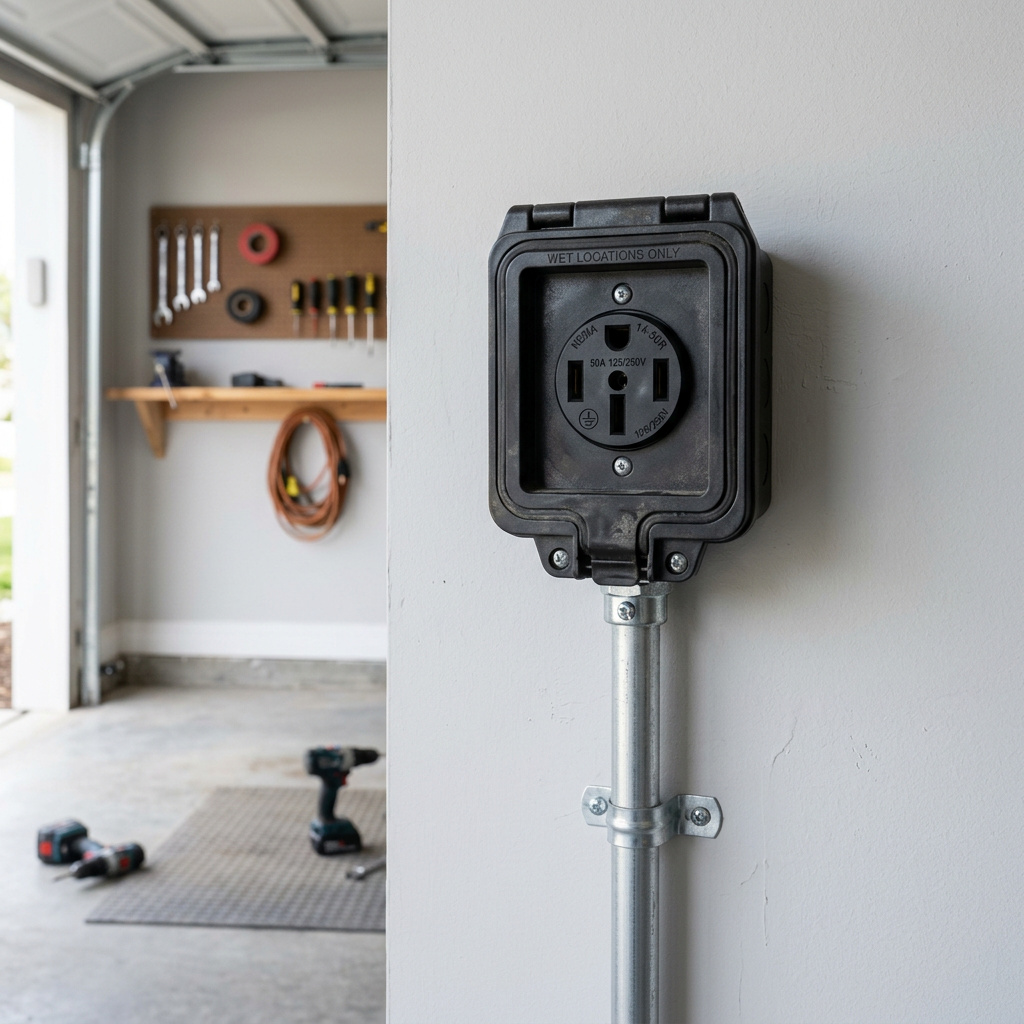

- Solid box & conduit: A properly secured outlet and conduit run — rated for the location, including weatherproof boxes outdoors.
- Panel capacity check: We confirm your service can carry another 50 A load, and recommend a panel upgrade only if you genuinely need one.
GFCI Protection, Permits & Code Compliance
Two things trip up almost every unpermitted 14-50 install in California:
- GFCI requirement: Current NEC rules require GFCI protection for 50 A, 125/250 V receptacles in dwellings — usually via a GFCI breaker. We install it correctly so it protects you without nuisance-tripping your EV charger or RV.
- Permit & inspection: A new 240 V circuit requires an electrical permit in Auburn and Placer County. Beyond being code, a permitted install protects your insurance coverage and avoids problems when you sell.
We pull the permit, install to the California Electrical Code, and coordinate the final inspection — the whole job, handled.
Frequently Asked Questions
- What size wire does a NEMA 14-50 need? For a full 50 A circuit, 6 AWG copper conductors. Aluminum can be used in larger sizes but copper is the straightforward choice for most home runs.
- Does a NEMA 14-50 require GFCI protection? In dwellings under current code, yes — typically through a GFCI breaker. We install and test it as part of the job.
- Does a 14-50 need a neutral? Yes. It’s a 4-prong outlet (two hots, neutral, ground), so the circuit must include a neutral even if your device doesn’t use it.
- Can I use a NEMA 14-50 to charge my Tesla or EV? Absolutely — with the Tesla Mobile Connector or a portable Level 2 EVSE. If you want the fastest, permanent setup instead, see our Tesla charger installation and EV charger installation services.
- How much does it cost to install a NEMA 14-50 outlet? The drivers are distance from the panel, wall and routing conditions, and whether a GFCI breaker or panel capacity work is needed. We quote a fixed price after a quick assessment.
- How fast will it charge an EV? On a 50 A circuit a portable Level 2 charger pulls up to ~40 A — roughly 25–30 miles of range per hour for most EVs.
